– Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

Features
– WiFi 7 tri-radio with 6 GHz
– 6 spatial streams
– 140 m2 (1,500 ft2) coverage
– 300+ connected devices
– Powered using PoE+
– 2.5 GbE uplink

Specifications
Mechanical

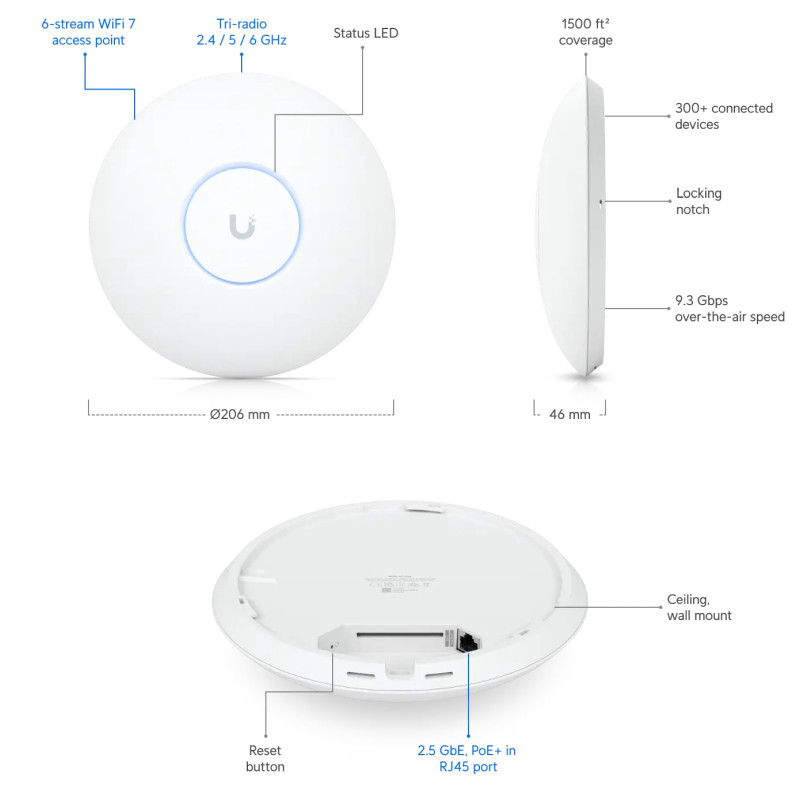

– Dimensions: O206 x 46 mm (O8.1 x 1.8″)
– Weight: 680 g (1.5 lb)
– Enclosure material: Polycarbonate, metal
– Mount material: Stainless steel (SUS304), galvanized steel (SGCC)

Hardware
– Networking interface: (1) 1/2.5 GbE RJ45 port
– Management interface: Ethernet
– Power method: PoE+
– Power supply: UniFi PoE switch
– Supported voltage range: 44—57V DC
– Max. power consumption: 21W

Max. TX power
• 2.4 GHz: 22 dBm
• 5 GHz: 26 dBm
• 6 GHz: 23 dBm

MIMO
• 2.4 GHz: 2 x 2
• 5 GHz: 2 x 2
• 6 GHz: 2 x 2

Throughput rate
• 2.4 GHz: 688 Mbps
• 5 GHz2: 882 Mbps
• 6 GHz: 5765 Mbps

Antenna gain
• 2.4 GHz: 4 dBi
• 5 GHz: 6 dBi
• 6 GHz: 5.8 dBi

LEDs: White/blue
– Button: Factory reset

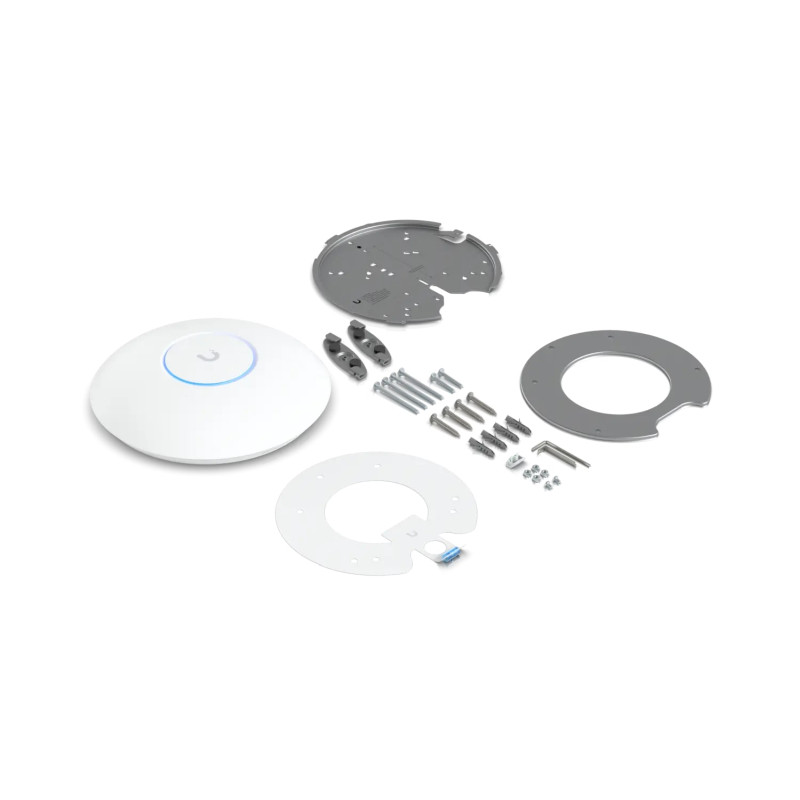

– Mounting: Wall/ceiling (Included)
– Operating temperature: -30 to 60° C (-22 to 140° F)
– Operating humidity: 5 to 95% noncondensing
– Certifications: CE, FCC, IC

Software
– WiFi standards: 802.11a/b/g/n/ac/ax/be
– Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
– BSSID: 8 per radio
– VLAN: 802.1Q
– Advanced QoS: Per-user rate limiting
– Guest traffic isolation. Supported
– Concurrent clients: 300+

Supported Data Rates
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
• 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements
– UniFi Network: Version 8.0.26 and later
– UniFi OS: Version 3.2 and later

Jamstvo: 24 mjeseca
Šifra proizvođača: U7-Pro
EAN: 810084693650
