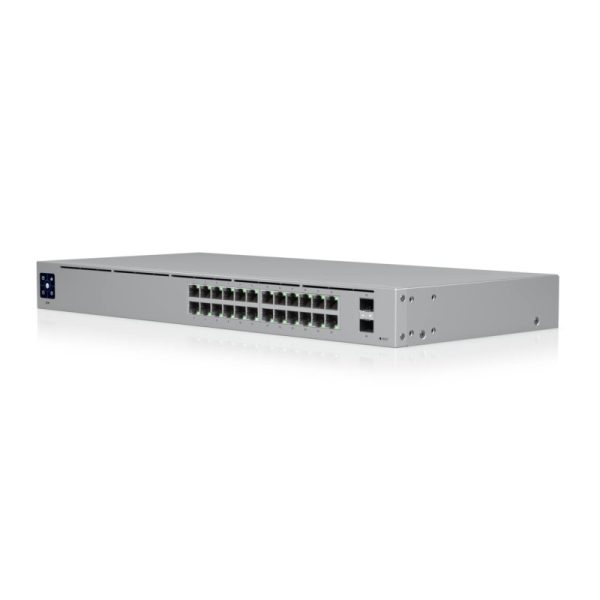

– Layer 2 switch with (24) GbE RJ45 ports and (2) 1G SFP ports.
– The Switch 24 (USW 24) is a fully managed, fanless switch with (24) GbE RJ45 ports and (2) 1G SFP ports.
– The versatile USW 24 provides Gigabit links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network.
– The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.
– This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

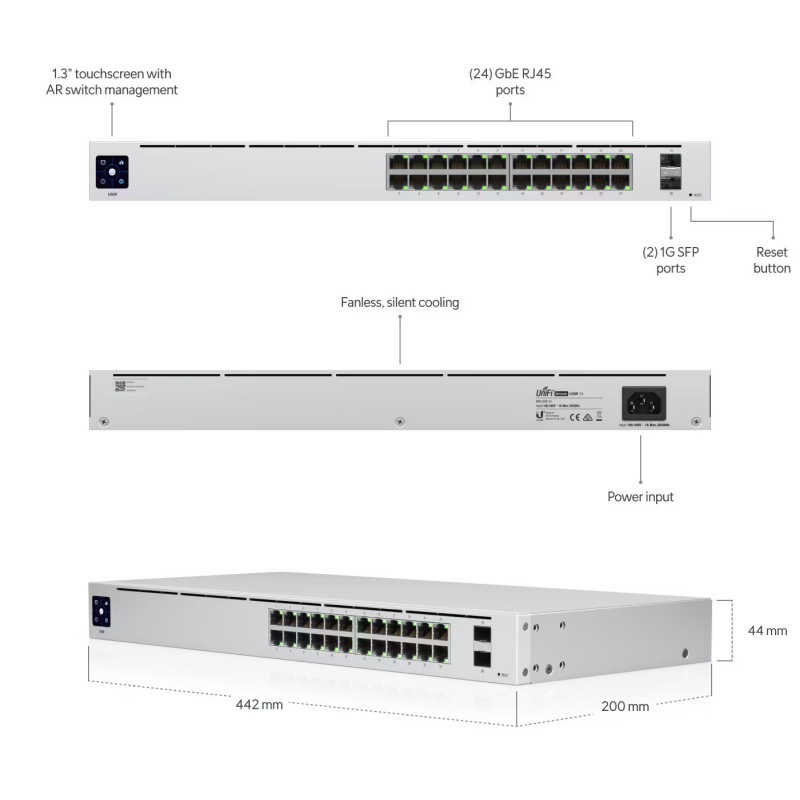

Features
– (24) GbE RJ45 ports
– (2) 1G SFP ports
– (1) 1.3″ LCM color touchscreen with AR switch management
– Fanless, silent cooling
* Managed with the UniFi Network application: Version 5.12.32 and later
Works with the UniFi Network Application
– Manage your networks from a single interface.
– Enjoy intuitive configuration options, as well as robust device control and monitoring.
– Upgrade device firmware remotely.
– Easily manage network users and guests.
– Personalize the design, architecture, and privacy of guest hotspots.
Specifications
– Total Non-Blocking Throughput: 26 Gbps
– Switching Capacity: 52 Gbps
– Forwarding Rate: 38.69 Mpps
– Max. Power Consumption: 25W
– Power Method: Universal AC Input: 100-240VAC, 50/60 Hz
– Power Supply: AC/DC, Internal, 36W
– Networking Interfaces: 24× 10/100/1000 Mbps Ethernet RJ45 Ports, 2× 1 Gbps SFP Ports
– Management Interface: Ethernet In-Band
– Modes: SMB Layer 2 Gigabit Ethernet Switch
– ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
– Operating Temperature: -5 to 40° C (23 to 104° F)
– Operating Humidity: 10 – 90% Noncondensing
– Certifications: CE, FCC, IC
LEDs
– System
* (1) Bootup Animation: Bootup in Progress
* Firmware Upgrade Icon: Firmware Upgrading
* Steady White: Factory Defaults, Awaiting Adoption
* Steady Blue: Device is Adopted
– Ethernet: Green: 1G, Amber: 10/100 Mbps
– SFP: Green: 1G
Jamstvo: 24 mjeseca
Šifra proizvođača: USW-24
EAN: 810010071385
