POWER STRIP SIMPLICITY FOR 24V DEVICES
– Simply providing 24V 2-pair input makes NanoSwitch an outdoor 4-port unmanaged switch with “always on” 24V 2-pair output on three ports

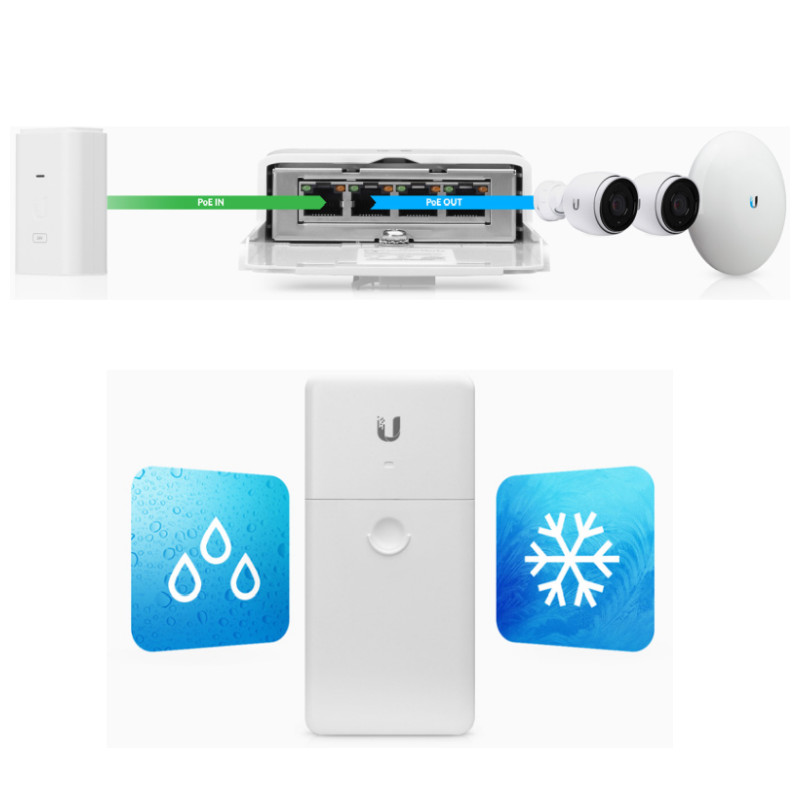

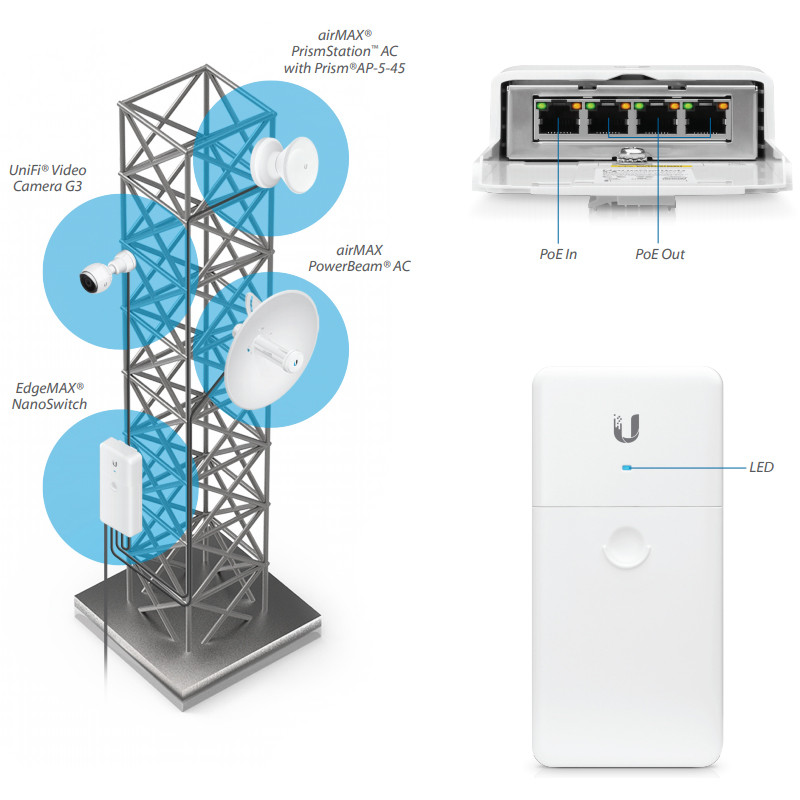

PoE PASSTHROUGH
– PoE In – RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 2-pair PoE to power the switch
– PoE Out – RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 24W PoE output

DESIGNED FOr OUTDOOR DURABILITY
– The NanoSwitch features an outdoor weatherproof form factor
– Operating Temperature: -30C to 70C (-22F to 158F)

Specifications
– Enclosure Characteristics: White Polycarbonate
– Total Non-Blocking Line Rate: 4 Gbps
– Typical Power Consumption: 1.5W
– Passive PoE Max. Wattage per Port: 24V, 2-Pair, 1A per Port (24W)
– Total Passive PoE Max. Wattage: 24V, 2-Pair, 1A for 3 Ports (24W)
– Power Method: Passive 24V, 2-Pair PoE In
– Power Supply: POE-24-24W PoE Adapter (Not Included)
– Passive PoE Voltage Range: 21.6 – 26.4V
– LEDs: Speed/Link/Activity (All Ports)
– Networking Interfaces: (4) 10/100/1000 Mbps RJ45 Ports
– PoE Interfaces: Passive 24V, 2-Pair PoE In
– ESD/EMP Protection: Air: +/-24 kV, Contact: +/-24 kV
– Operating Temperature: -30C to 70C (-22F to 158F)
– Operating Humidity: 5% to 95% Noncondensing
– Shock and Vibration: ETSI300-019-1.4 Standard
– Certifications: CE, FCC, IC
– Dimensions: 196.4×93.5×32.4 mm
– Weight: 271 g

Jamstvo: 24 mjeseca
Šifra proizvođača: N-SW
EAN: 817882021708
