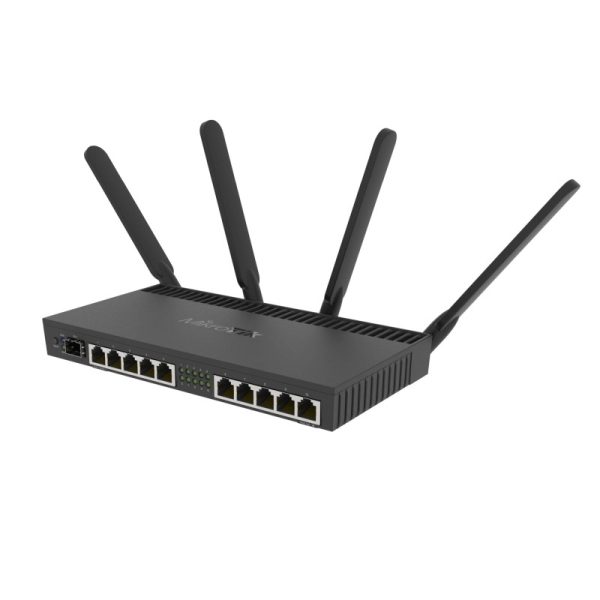

– RB4011 series – amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration
– The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit
– The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black
– RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz
– For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot
– RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)
Specifications
– Architecture: ARM 32bit
– CPU: AL21400
– CPU core count: 4
– CPU nominal frequency: 1.4 GHz
– Dimensions: 228×120×30 mm
– License level: 5
– Operating System: RouterOS
– Size of RAM: 1 GB
– Storage size: 512 MB
– Storage type: NAND
– Tested ambient temperature: -40C to 45C
POWERING
– PoE in: Passive PoE
– PoE out: Passive PoE up to 57V
– PoE in input Voltage: 18-57 V
– Number of DC inputs: 2 (DC jack, PoE-IN)
– DC jack input Voltage: 12-57 V
– Max out per port output (input > 30 V): 420 mA
– Max out per port output (input < 30 V): 600 mA
– Max total out (A): 600 mA
– Max power consumption: 44 W
– Max power consumption without attachments: 23 W
WIRELESS
– Wireless 5 GHz number of chains: 4
– Wireless 5 GHz standards: 802.11ac MU-MIMO
– Antenna gain dBi for 5 GHz: 3
– Wireless 5 GHz chip model: R11e-2HnD
– Wireless 2.4 GHz number of chains: 2
– Wireless 2.4 GHz standards: 802.11b/g/n
– Antenna gain dBi for 2.4 GHz: 3
– Wireless 2.4 GHz chip model: R11e-2HnD
ETHERNET
– 10/100/1000 Ethernet ports: 10
FIBER
– SFP+ ports: 1
PERIPHERALS
– MiniPCI-e slots: 1
– Serial port: RJ45
OTHER
– PCB temperature monitor: Yes
– Voltage Monitor: Yes
INCLUDED PARTS

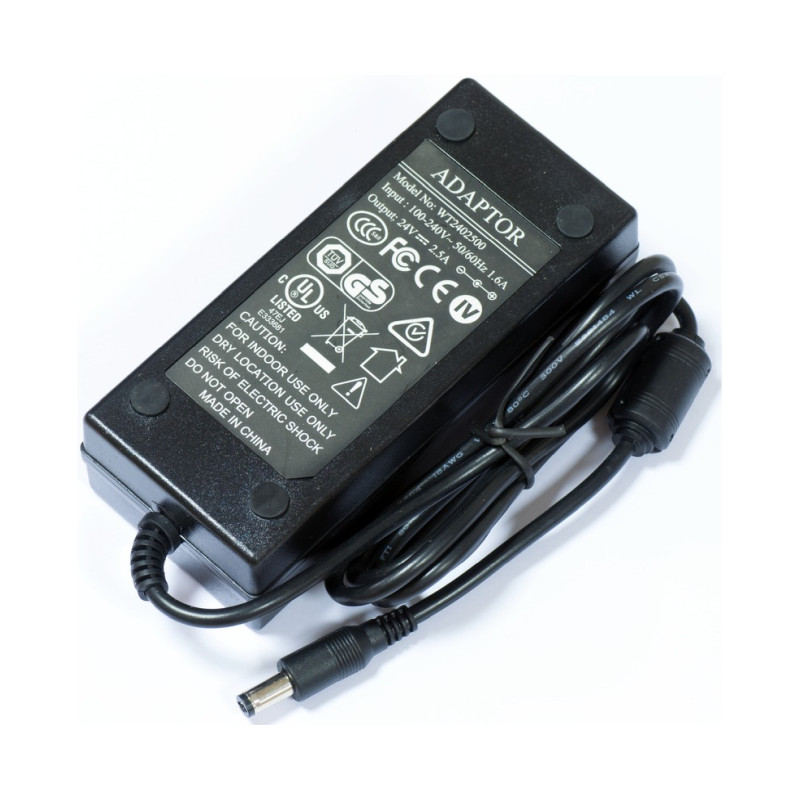

– 24V / 2.5A power adapter

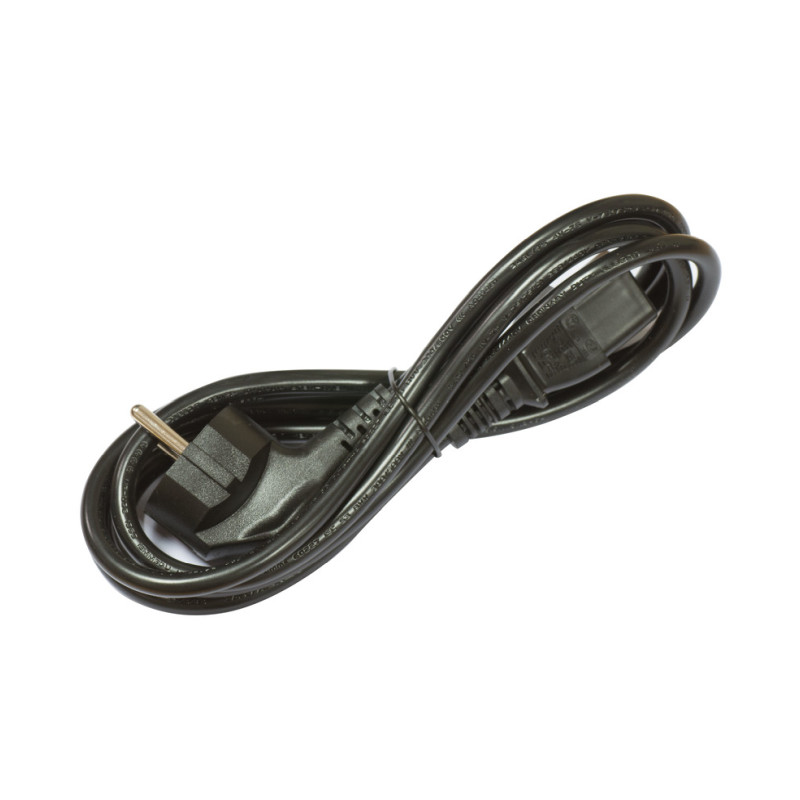

– IEC cord
Jamstvo: 24 mjeseca
Šifra proizvođača: RB4011iGS+5HacQ2HnD-IN
EAN: 4752224002693
