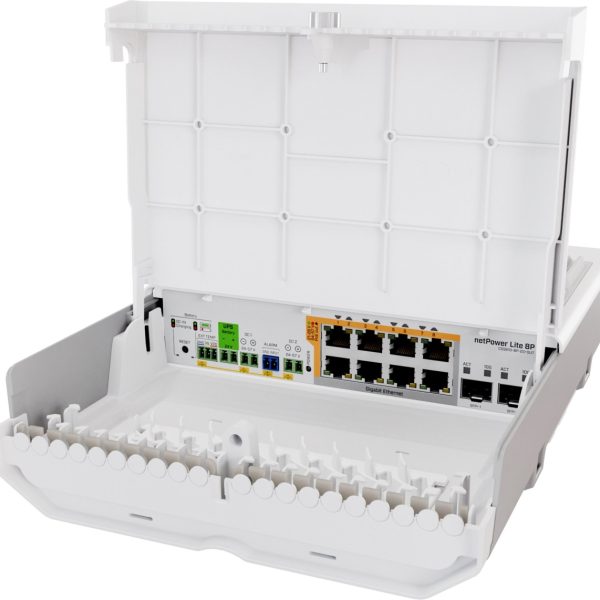

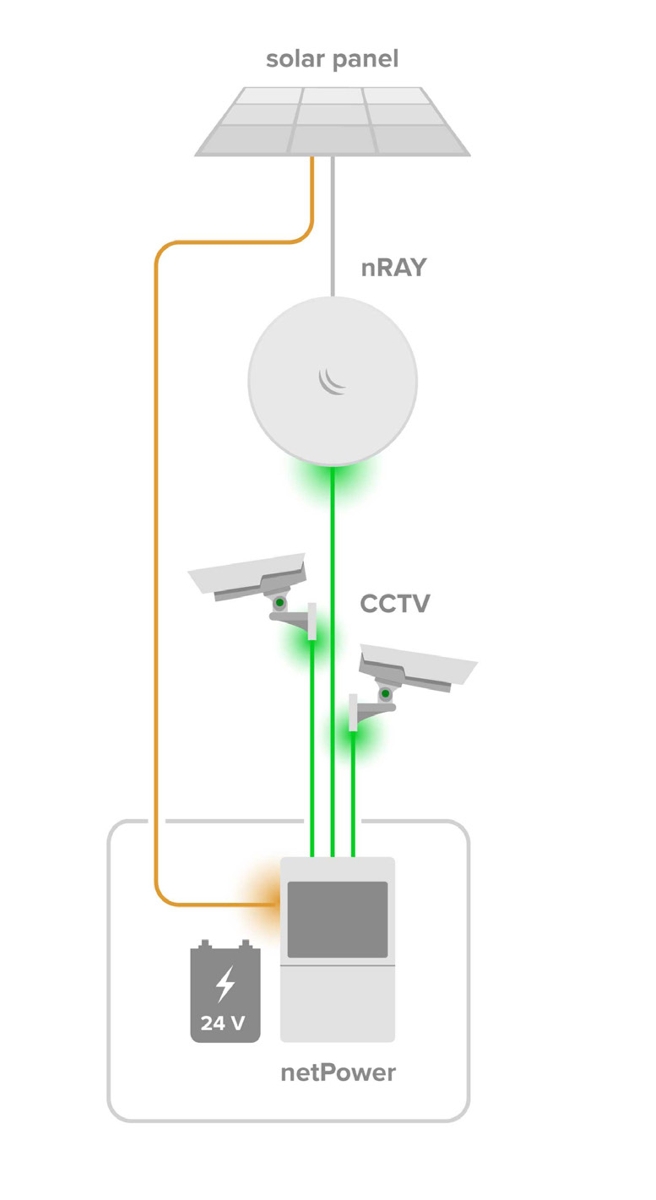

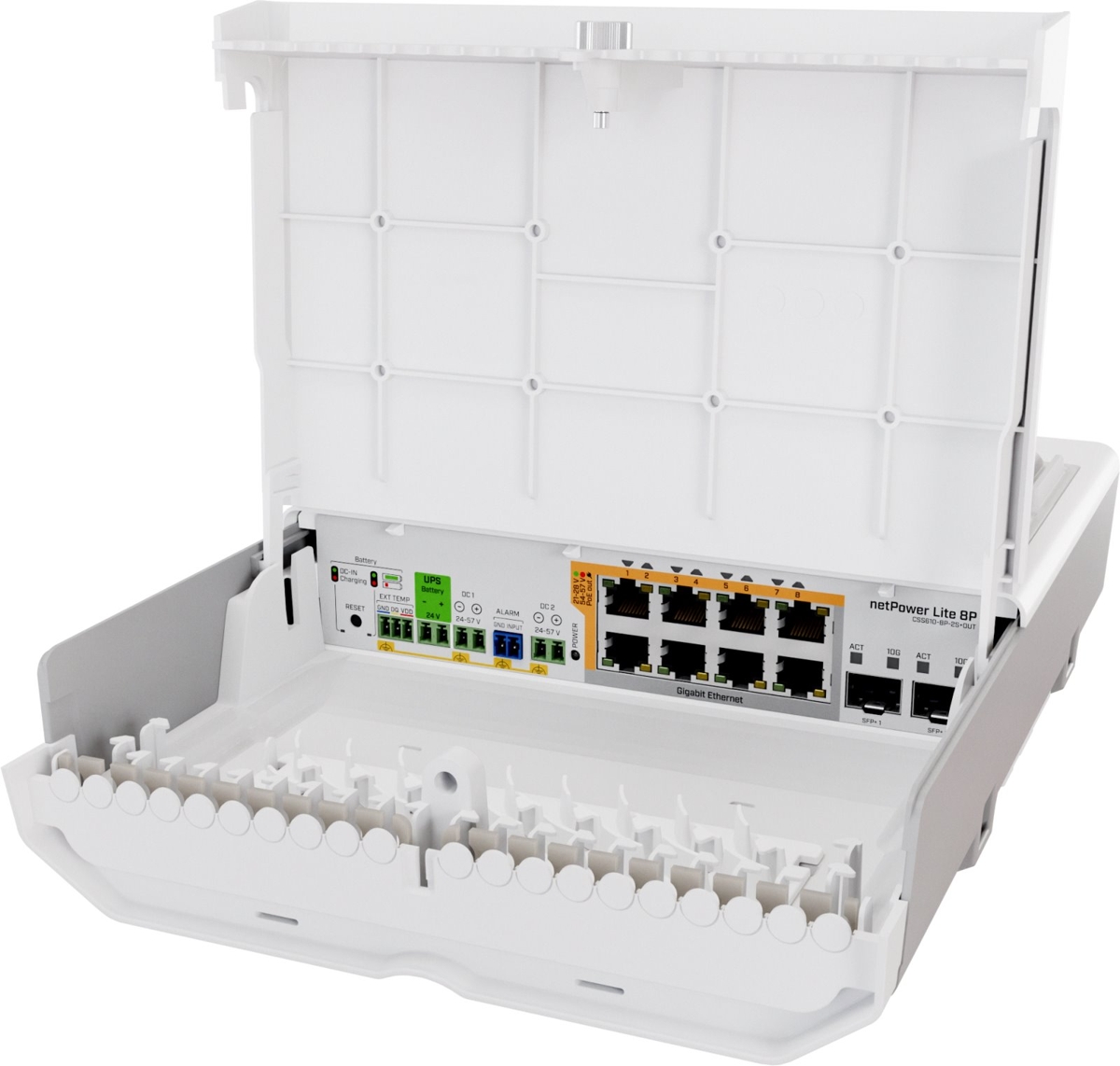

Low-cost. Tough. And always ON! Compact PoE switch with built-in UPS and smart battery charger – because your CCTV cameras and access points deserve true off-the-grid resilience.

Features:
– Operating System: SwOS Lite
– Storage size: 64 KB
– Storage type: FLASH
– MTBF: Approximately 200’000 hours at 25C
– Tested ambient temperature: -40°C to 70°C

POWERING
– Number of DC inputs: 3 (2-pin terminal)
– 2-pin terminal input Voltage: 24-57 V (Battery 22-30 V)
– Max power consumption: 208 W
– Max power consumption without attachments: 9 W
– Cooling type: Passive

PoE-OUT
– PoE-out ports: Ether1-Ether8
– PoE out: 802.3af/at
– Low voltage PoE-Out current limit: 1.0 A
– High voltage PoE-Out current limit: 0.64 A
– Total output power: 120

ETHERNET
– 10/100/1000 Ethernet ports: 8
– Number of 1G Ethernet ports with PoE-out: 8

FIBER
– SFP+ ports: 2

OTHER
– CPU temperature monitor: Yes
– Voltage Monitor: Yes
– Current Monitor: Yes

CERTIFICATIONS & APPROVALS
– Certification: CE, EAC, ROHS
– IP: 54

INCLUDED PARTS
– Hose clamp x2
– K-66 fastening set
– Temperature sensor

Jamstvo: 24 mjeseca
Šifra proizvođača: CSS610-8P-2S+OUT
EAN: 4752224006936
