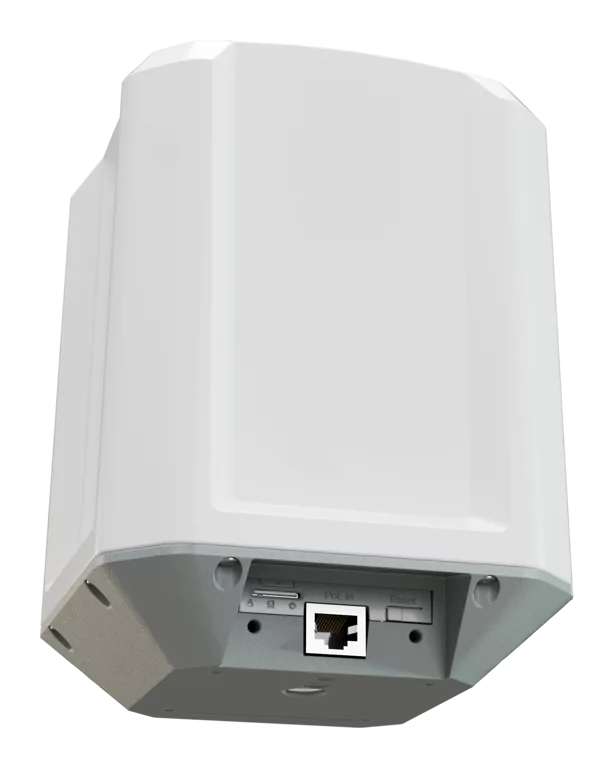

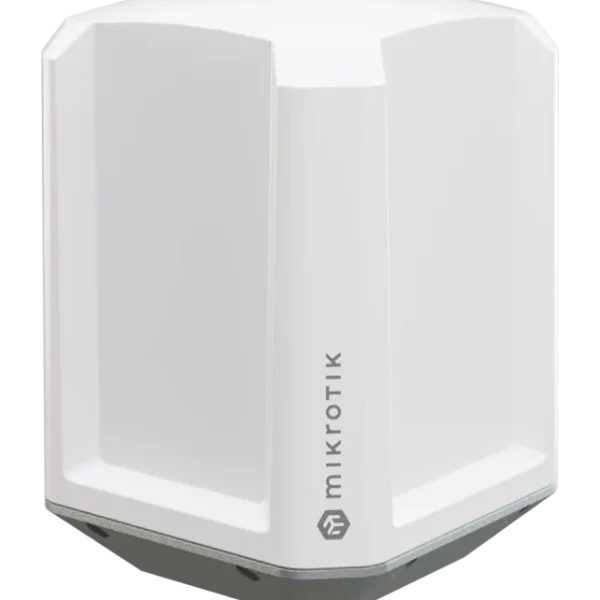

A rugged outdoor 5G device that uses omnidirectional antennas and built-in eSIM support to automatically connect to the best available tower – no antenna alignment or physical SIM swaps required. IP67, maritime durability, GNSS, PoE-in.
Features:
– Product code: LAMPGM&RG520F-EU
– Architecture: ARM 64bit
– CPU: 88F3720
– CPU core count: 2
– CPU nominal frequency: 800 MHz
– CPU Threads count: 2
– RouterOS license: 3
– Operating System: RouterOS v7
– Size of RAM: 512 MB
– Storage size: 32 MB
– Storage type: FLASH
– MTBF: Approximately 200’000 hours at 25C
– Tested ambient temperature: -40°C to 70°C
Powering
– Number of DC inputs: 1 (PoE-IN)
– Max power consumption: 10 W
– Cooling type: Passive
– PoE in: 802.3af/at
– PoE in input Voltage: 12-56 V
Mobile
– 3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
– 3G bands: 1 (2100 MHz), 5 (850 MHz), 8 (900 MHz)
– LTE Category: 20 (DL: 2.0 Gbps; UL: 200 Mbps)
– LTE FDD bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz), 32 (1500 MHz)
– LTE TDD bands:, 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 42 (3500 MHz), 43 (3700 MHz)
– 5G NSA FDD bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
– 5G NSA TDD bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 75 (1500 MHz), 76 (1500 MHz), 77 (3700 MHz), 78 (3500 MHz)
– 5G SA FDD bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
– 5G SA TDD bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 75 (1500 MHz), 76 (1500 MHz), 77 (3700 MHz), 78 (3500 MHz)
Ethernet
– 10/100/1000 Ethernet ports: 1
– Number of 1G Ethernet ports with Reverse PoE (PoE-in): 1
Peripherals
– Number of SIM slots: 1 Modem (Micro SIM)
– Number of M.2 slots: 1
Other
– eSim: Yes
Certification & Approvals
– Certification: CE, EAC, ROHS
– IP: 67
Package content
– Device
– 24V 0.5A power adapter
– Gigabit PoE injector
– LAMP mount
*The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use.
*The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Jamstvo: 24 mjeseca
Šifra proizvođača: LAMPGM&RG520F-EU
EAN:
